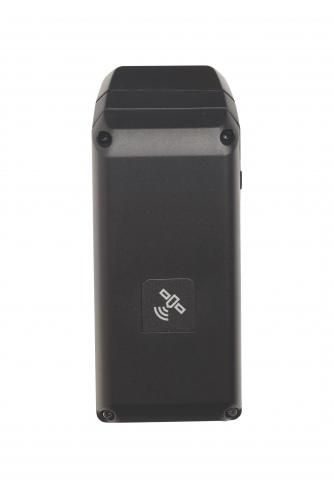

Trimble EMPOWER EM100 GNSS Module
• SBAS - WAAS, EGNOS, MSAS, GAGAN, SBAS ranging
• Sub-Metre Accuracy - SBAS 1m; VRS (Now) H-Star: 75cm; VRS/DGNSS: 75cm; RTX ViewPoint :50cm
• Compatible OS - Windows 10 Pro or Android
• IP Rating - IP65/ IP67
Product Description
Get in Touch
Our highly experienced and friendly staff are here to answer your question and to assist you in selecting the right mobile system for your requirements.
Call us on 01691 900222
Email [email protected]
The Trimble™ EMPOWER EM100 GNSS MODULE offers a high-sensitivity GNSS Receiver with on-board processing of all positioning data compatible with the Yuma 7 Windows 10 tablet with 7" display, the Ranger 7 Windows 10 handheld with 7" display and the Nomad 5 Android handheld with 5" display.
In addition it features the EMPOWER Developer Program to facilitate quick prototyping of your own custom modules. Adjust quickly to new customer demands in the future with the freedom to develop when and what you want. Quick and easy to install and remove with two self-retaining screws. Providing an all in one sub-metre GPS receiver and powerful handheld device.
| Specs | Description |
|---|---|
| GNSS | - Trimble Maxwell 6 |
| Sensor Type | - L1/G1 GNSS Receiver |
| Internal Antenna | - Helical antenna |
| External Antenna | - SMB Female,3.4V DC, 150mA 50 Ohms |
| Constellations | - GPS L1 C/A, GLONASS L1 C/A (aka G1C), SBAS L1 C/A (WAAS, EGNOS, MSAS,GAGAN, SDCM), Galileo E1, BeiDou B1, QZSS L1 C/A & L1-SAIF |
| SBAS Accuracy | - SBAS: 1m, VRS (Now) H-Star: 75cm, VRS/DGNSS: 75cm, RTX - ViewPoint 50cm |
| GNSS | - Chipset: Ublox NEO-M8T • Horizontal accuracy1 : 2-4 m (RMS) • Constellations: L1 GPS, GLONASS, BeiDou, SBAS • Supports raw-data output (post-processing) and RTCM 2.3 |
| Power |
- Powered through device (Trimble Yuma 7, Ranger 7 or Nomad 5) |
| Rugged Features | - IP65/ IP67 - Operating temp. -30 to 60 °C - MIL-STD-810G (1.2m drop shock) |
| Dimensions | - 132 mm x 55 mm x 60 mm - 130g |
