Nexcom VTC 6221

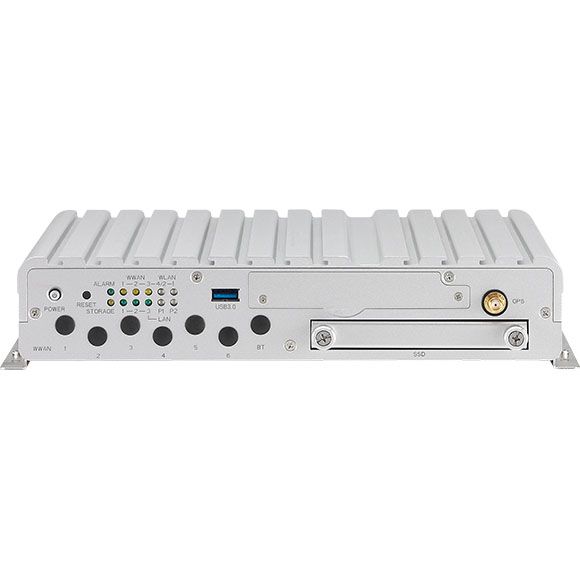

The Nexcom VTC 6221 Fanless In-Vehicle Computer

VTC 6221, based on Intel® Core™ quad core processor E3950 (up to 2.0GHz), is specifically comply with stringent E mark standard in rugged, fanless and compact mechanism. VTC 6221 provides complete communication capability between vehicle and computer with build-in CAN Bus 2.0B interface.

VTC 6221 features rich WLAN and WWAN wireless connectivity. With dual SIM cards per modem support, VTC 6221 allows six SIM cards backup each other for a better connectivity quality by software. In addition, six SIM cards and three WWAN modules architecture can increase the bandwidth for a faster data transmission speed. Equipped with intelligent power management, VTC 6221 can be waked on by ignition, RTC timer or SMS message remotely. By integrating the variety of I/O ports and 3 x mini-PCIe, 2 x M.2 sockets expansibility, up to three screens via VGA and HDMI connections, VTC 6221 keeps the flexibility to meet the demand for different vehicle applications, such as infotainment, dispatching system, cellular/wireless network connectivity, and video surveillance. The design of mini-PCIe slots x 3 can solve the potential request from the market when needed.

• Intel Atom® processor quad core E3950, up to 2.0GHz
• Six SIM cards + three WWAN modules support
• Built-in u-blox-M8 GPS
• Built-in CAN Bus 2.0B
• 1 x External storage (compatible with 9mm disk)
• E mark conformity
• B x mini-PCIe + 2 x M.2 socket expansion
• Wide voltage input 9~48 VDC
• Three video outputs, two VGA and one HDMI
• 1 x Mic-in, 2 x Line-out
