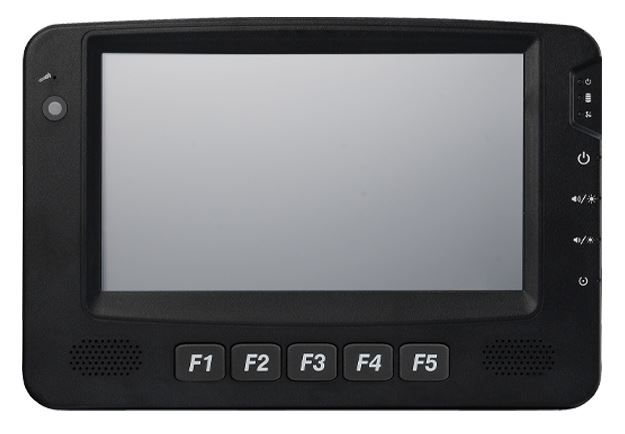

Nexcom VMC 1110
• Display - 7" 1024 x 600 TFT LCD with resistive touch screen
• CPU - Intel Atom® dual core x7211RE
• OS - Windows 11/Windows 10/Linux
• MIL-STD-810H
Product Description
Get in Touch
Our highly experienced and friendly staff are here to answer your question and to assist you in selecting the right mobile system for your requirements.
Call us on 01691 900222
Email [email protected]
VMC 1110, a new generation 7-inch vehicle mount computer with dual core Intel Atom® processor, is designed for transportation and harbor applications requiring real-time vehicle tracking and job-dispatching. For real-time communication between driver and central control room, VMC 1110 provides the capability of wireless connection from GNSS, WLAN to WWAN. To get more data from accessories, it offers RS-232, RS-485, USB 2.0, GPIO, and LAN connection. CAN FD is able to help to receive car status more quickly and correctly. Due to the unique features above, VMC 1110 is perfect to use in harbor application from container truck, forklift, and container stacker.
- 7" 1024 x 600 TFT LCD monitor with resistive touch screen
- LCD Brightness 1000 cd/m² (typical)
- Built-in Intel Atom® dual core x7211RE 1.0GHz
- Compact and fanless design
- On screen programmable F1 ~ F5 function keys
- Support GNSS/WWAN tracker function for car-safety
- Built-in GNSS (Optional: Dead Reckoning Support)
- GNSS/WLAN/WWAN for wireless communication
- CAN FD for car diagnostic
- Wide range DC input from 9 ~ 36V
- Military standard for vibration and shock
- CE/FCC/EMark
| Specs | Description |
|---|---|
| Physical | Dimension - 213 x 145 x 50mm / Weight - 1.5 Kg Gross |
| Processor | Intel Dual Core x7211RE 1.0GHz |
| RAM | DDR5 4800MHz 262-pin SO-DIMM, up to 32GB, 8GB default |
