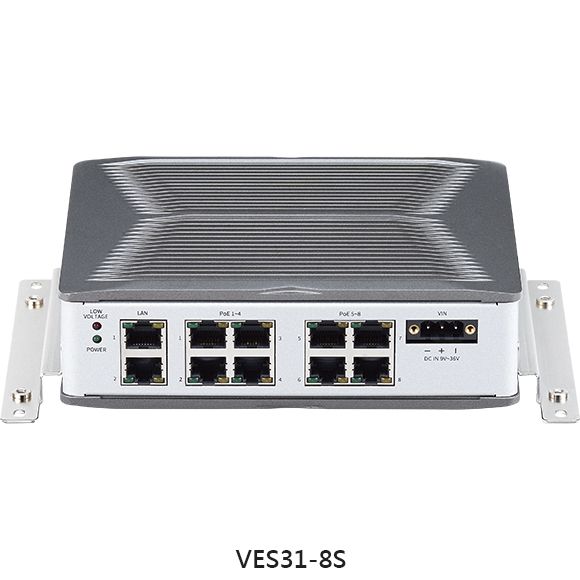

Nexcom VES31-4SR/8SR

The VES 31-4SR/VES 31-8SR offer unmanaged mobile PoE switch is designed for telematics applications in harsh environments with fanless enclosure. It provides 6/10 Giga bit Fast Ethernet ports including 4/8 IEEE 802.3af/at compliance PoE+ ports to transfer large amounts of video streaming, voice and critical data across Ethernet network smoothly and quickly.

The mobile PoE switches support a wide voltage input range of 9VDC to 36VDC for the trains with 24VDC power system. VES 31-4SR/VES 31-8SR provide smart power management with low battery voltage protection, power-on and power-off delay timer, and auto ignition power on/off functions. These unique features can secure reliable operation and prevent premature failure of both the PoE switches and trains.

VES 31-4SR/VES 31-8SR are encased in a fanless dustproof enclosure and can operate under shock, vibration, and temperature extremes from -40 to 70°C. The mobile PoE switches are also small in size and support optional din rail mounting for ease of installation with PD devices such as IP cameras and Wi-Fi access points.

• 4/8 x IEEE 802.3af/at compliant Gigabit Ethernet ports, 120W
• 30W at 54V DC for each PoE port
• Low battery voltage protection
• CE/FCC, UKCA, EN50155 mark certification
• Wide power input range 9 ~ 36VDC with ignition for 24VDC railway system
• -40 ~ 75°C operating temperature
• Ignition power on/off support
• Power on/off delay time setting
