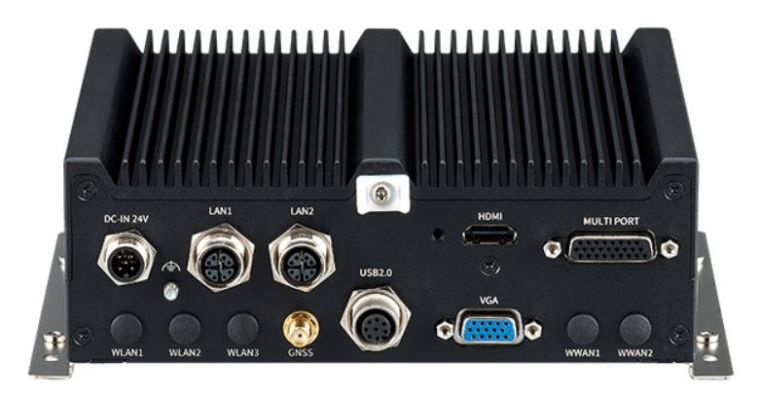

Nexcom nROK 1031-C2

nROK 1031 features next-generation Intel Atom® x6413E processor quad-core 1.5GHz, with powerful graphics and multimedia enhancements. It offers an onboard CAN 2.0B, an optional OBD interface (SAE J1939) for vehicle diagnostics, and an advanced GNSS receiver supporting GPS+QZSS/Glonass/Galileo/Beidou. Moreover, for connectivity, it provides optional WLAN (Wi-Fi 5/6/6E) and optional WWAN (LTE/5G NR) wireless data. In consideration for convenience, there are dual micro-SIMs and one micro-SIM with an external access design, allowing users to easily access the micro-SIM card. Equipped with an optional AI accelerator M.2/mPCIe module, the nROK 1031 also functions as a reliable AI edge computing platform, providing inn

The nROK 1031-C2 provides dual IEEE 802.3af/at PoE functions and is suited for most PoE devices. This includes connecting with wireless access points and IP cameras. Furthermore, an additional 12VDC output can be provided for an external display via easy power wire arrangements. nROK 1031 is a flexible rolling stock computer that meets the various demands of train applications, such as wireless gateway, infotainment, dispatching system, AI edge computing, and mobile video surveillance.ovative AI solutions for the rolling stock. With a rugged, fanless, and compact enclosure, this fanless computer can easily be installed.

• Intel Atom® x6413E quad-core processor, 9W
• Compact and fanless design
• 5G NR and Wi-Fi 6/6E wireless communication options
• Built-in U-blox M9N GNSS
• Built-in 1 x CAN bus 2.0B (optional SAE J1939)
• 1 x mini-PCIe + 2 x M.2 socket expansions
• 2 x POE support, total 60W (nROK 1031-C2)
• Dual display outputs
• Optional AI accelerator M.2/mPCIe module
• Certified by CE/UKCA/FCC/EN 50155
