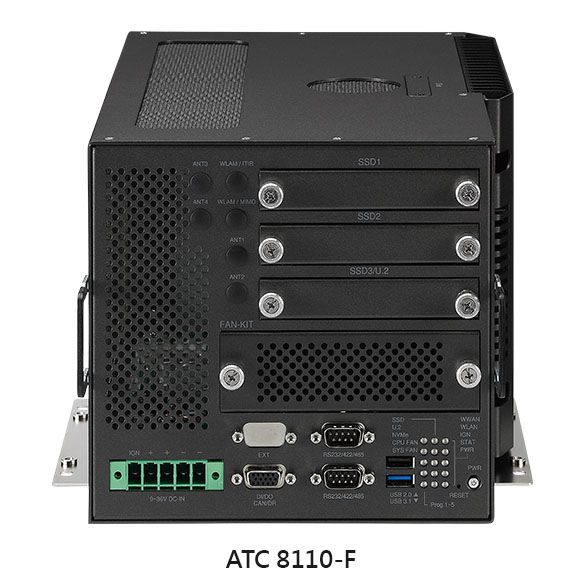

Nexcom ATC 8110

AI has become an essential component of automated vehicle technology. With built-in high-performance Intel® Coffee Lake S/Refresh processing power and the powerful NVIDIA® GeForce® RTX 2080 Ti graphics engine with 4,352 CUDA® cores, ATC 8110 can satisfy a wide variety of applications for Autonomous Vehicle, law enforcement and factory automation fields, like the ANPR, facial recognition, machine vision and self-driving, etc.

Extreme speed of data-storage has become more and more important as a rapid growth of high-speed multi-cameras with a high frame rates has taken place. For that, ATC 8110 is designed with up to 5 USB 3.1 and up to 8 GbE w/ PoE GigE ports for high-end insdustrial cameras access to achieve a wire-speed performance. Also, the latest ultra-fast U.2/M.2 NVMe media and up to three 2.5” high-density SSD/HDD are carried out for customers to meet the requests of huge data streaming, secure and the integrity for multi-cameras installed.

ATC 8110 also provides an excellent expanding capability for users to install up to three add-on PCIe cards like the frame grabber in GigE and/or USB3 Vision interface, or a discrete graphics engine to enhance the graphics power. To position where you are and to keep connection with the remote central management while the system is on edge computing, ATC 8110 is the best choice for you to provide a telematics functionality, like up to two LTE/WLAN modems, GNSS w/ DR function and eMTC collaborated with other communicartion ports, RS232/422/485 and CAN 2.0B/OBD module, etc.

ATC 8110 can be configured to be a fanless or fan scheme in option, so that it’s a more elastic design for users to choose which CPU they want to operate. Also, it can support up to station-grade Xeon® w/ up to 80W TDP to work at a operating environment temperature of -30°C~60°C collaborate with the most 250W RTX 2080 Ti discrete graphics card.

In-vehicle mandatory regulation, ATC 8110 supports 9~36VDC power range with an ignition control that can comply with E-mark , CE/FCC Class A certification. In addition, based on a rugged design, ATC 8110 can meet US military MIL-STD-810G standard for sustaining vibration and shock even with a heavy graphics card installed in harsh environments.

• In-vehicle AI recognition and machine vision applications
• Fanless/fan flexibility design
• Up to 8-core Intel® Coffee Lake S/Refresh processing power
• 3 x PCIe 3.0 slots for Discrete Graphics/Inference/Frame Grabber cards
• Ultra-fast U.2/M.2 NVMe media for high-speed multi-cameras image capture
• RAID 0/1/5/10 configurable for data secure and integrity
• Wide-range 9~36VDC input with Ignition management
• Rich communication ports, 5 x USB 3.1, 2 x GbE, 4/8 GigE (PoE) and 4 x RS232/422/485
• Telemetric functionality of WWAN/5G NR, WLAN and GNSS with up to 4 x 4 MIMO and 4 SIM slots
• Compliant with E-mark, CE/FCC ClassA and MIL-STD-810G for anti-vibration/shock w/ graphics card installed
• Realize M-2-M through CAT-M (NB-IoT & eMTC)
