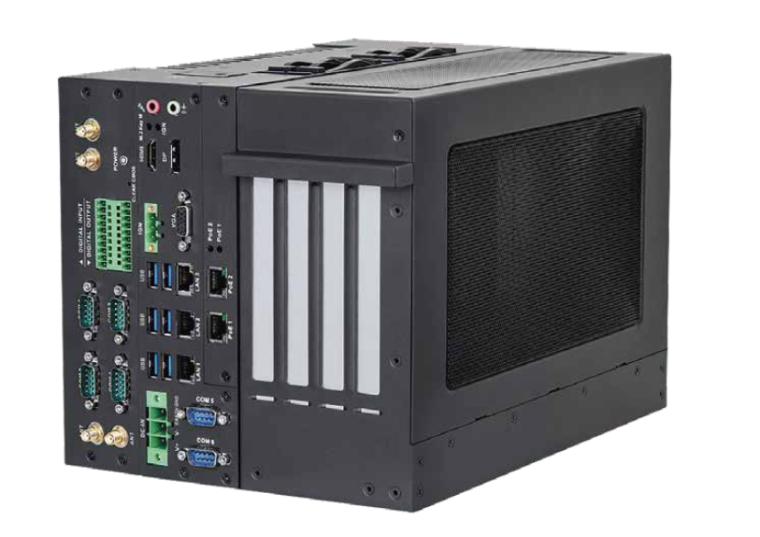

ASRock iEPF-9010S-EY4

As global adoption of Edge AI continues to rise through smart transitions, ASRock Industrial is excited to release the new iEPF-9010S/iEP-9010E Series Robust Edge AIoT Platform, enabled by 12th Gen Intel® Core™ Processors (Alder Lake S) with R680E/H610 chipsets to bring breakthrough performance at the Edge. Featuring excellent computing power with energized Edge AI acceleration, the iEPF-9010S/iEP-9010E Series provide high memory capacity, rich I/Os and expandability, wide RF connectivity- 4G LTE, 5G, Wi-Fi 6E, BT 5.2 with real-time TSN/TCC, plus ruggedness for industrial environments. The Series is an effective all-in-one consolidation for high-demanding workloads, tailor-made for mission-critical industrial applications such as factory automation, machine automation, robotic control, AI AOI, autonomous vehicles, smart cities, and much more.

Breakthrough Performance with Energized Edge AI Acceleration

Charged by the latest 12th Gen Intel® Core™, Pentium/Celeron Processors with R680E/H610 chipsets, the iEPF-9010S Series Expandable Edge AIoT Platform includes models- iEPF-9010S-EY4/iEPF-9012S-EY4; the iEP-9010E Series Compact Edge AIoT Platform includes models- iEP-9010E/iEP-9012E. The performance hybrid architecture of 12th Gen Intel® Core™ processor (Alder Lake S) supports up to 16 cores and 24 threads, enabling IoT use cases that are up to 1.36 times faster in single-thread performance and 1.35 times faster in multi-thread performance compared to previous 10th Gen Intel® Core™ processor. Moreover, the iEPF-9010S/iEP-9010E Series are designed with enhanced AI capabilities in different vertical markets with upgraded memory capacity in support of four DDR4 2933MHz up to 128GB (ECC memory supported by R680E and selected CPU). The Series show breakthrough results in parallelization processing of AI workloads, with up to 32 EUs fast AI inference driven by Intel® Xe Architecture. In addition, the Series’s flexible mechanical, thermal, and power design supporting 275mm x 111.15mm (L x H) max., with up to 255W graphic cards further energizes Edge AI acceleration.

Rich IOs Connectivity with TSN/TCC Real-time Computing

The Robust Edge AIoT Platform includes the iEPF-9010S Series Expandable Edge AIoT Platform with flexible expansion slots and the iEP-9010E Series Compact Edge AIoT Platform with space-saving and fan-less design for various industrial applications. The iEPF-9010S/iEP-9010E Series feature rich I/Os and provide up to five Intel^® 2.5 Gigabit LANs with two supporting PoE and one supporting vPro plus TSN/TCC capability for real-time connectivity. There are also up to six USB 3.2 Gen 2 x 1, one USB 2.0 internal connector with lock function, six COM (four RS-232/422/485, two RS-232), and eight DIs/eight DOs. Visual excellence is supported through one DisplayPort, one HDMI 2.0b, and one VGA, with various storage options via four SATA3 for 2.5-inch SSD/HDD, one M.2 Key M 2280 for NVMe SSD, and CFast (option).

High Expandability with PCIe Gen 4, RF Connectivity, and Workload Consolidation

Additional sockets for RF modules are also in place on the iEPF-9010S/iEP-9010E Series to support 4G LTE, 5G, Wi-Fi 6E, and BT 5.2, including one M.2 Key B for 4G/5G, one M.2 Key E for Wi-Fi 6E/BT 5.2, two Mini PCIe, and two Nano SIM card slots for option modules. Moreover, the iEPF-9010S Series is equipped with flexible expansion slots for a variety of expansion cards via Gen 4 options of one PCIe x16 or two PCIe x 8 and two PCIe x4 for graphic cards, frame grabber cards, motion cards, and IO cards. The Robust Edge AIoT Platform enables breakthroughs in workload consolidation capability, replacing dedicated edge compute devices for PLC, Motion Control, Machine Vision, etc. to enhance efficiency, and bring next-level results for industrial use cases.

• Intel® 12th Gen Core™ Processors with R680E Chipset
• 4 x 260-pin DDR4 SO-DIMM up to 128GB (32GB per DIMM)
• 1 x PCIe x16 (PCIe Gen4) or 2 x PCIe x8 (PCIe Gen4), 2 x PCIe x 4 (PCIe Gen4)
• 1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
• 6 x USB 3.2 Gen2x1, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO
• 5 x Intel 2.5G LAN (2 support PoE, 1 supports vPro)
• 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
• Powerful Edge AI acceleration enabled by the most flexible mechanical, thermal, and power design, with support for 275mm x 111.15 mm (L x H) max. and up to 255W graphic card
